Wireless built to perform and scale in extreme conditions

NW Towers seamlessly unites devices and structure together to create private,wireless networks ready for the harshest conditions and most challenging applications. We easily integrate with other networks and hardware so that you can scale your operations without losing performance, while maintaining control on operating expenditure.

Velocity SW25 - Wi-Fi Client and Access Point




Velocity SW25 provides an SD-LAN, centrally managed, mobile encrypted WIFI data path to new or existing industrial wireless networks.The SW25 is specifically designed for tough industrial mobile applications. Configure the SW25 as a fixed, ruggedized, IP67 rated access point for a multitude of outdoor network applications.

  • Part Number NWT-SW25
  • Industrial outdoor IP67 Rated WIFI
  • Client/AP
  • Fully Anodized Aluminum Enclosure
  • Dual M12 X-Code Gigabit Ethernet Connectors (Female)
  • Stainless Pipe Mounting Hardware Included.

Download datasheet

Velocity SL-18 - LTE Client and Access Point




The SL18 provides an SD-LAN, centrally managed, mobile encrypted LTE data path to new or existing Mesh deployments. Install SL18s on mobile vehicles paired with a supported Mesh device to allow a vehicle to roam beyond MESH coverage boundaries, providing a seamless sub-millisecond lossless layer-2 handoff to private or carrier LTE networks. Use multiple SL18 devices in a fixed or mobile network to enable load balancing and increased overall capacity and data throughput.

  • Part Number NWT-SL18
  • Industrial Outdoor IP67 Rated LTE
  • (CAT18) Gateway, Fully Anodized Aluminum Enclosure
  • Dual M12 X-Code Gigabit Ethernet Connectors (Female)
  • Stainless Pipe Mounting Hardware Included

Download datasheet

Venari - Ruggedized GNSS Device




Venari, a fully encapsulated, Outdoor GPS Receiver features a highly sensitive, low-power consumption chipset in an ultra-compact outdoor form factor. Powered by a SiRF Star IV GPS chipset, will provide you with superior performance in urban canyons, and in dense foliage. SiRF CGEE (Client Generated Extended Ephemeris) technology enables the device to predict satellite positions for up to 3 days in advance, and will deliver a CGEE-start time of less than 15 seconds under most conditions without any network assistance.

  • Part Number NWT-GPS-USB-OAS-02
  • Industrial Outdoor IP67 Rated GPS
  • 2m Stainless Steel Armored USB
  • 13/16-28UN Threaded Weatherproof USB (Male) Connector
  • Rigid ASA Plastic Housing
  • 48 Channel All-In-View Tracking
  • SiRF Star IV Chipset
  • WAAS / EGNOS Support

Download datasheet

Ironclad - Our industrial-rated Armored CAT5E Ethernet cable




Ironclad is the Industrial CAT5E Ethernet cable designed for the outdoors. It features 4 Bonded-Pair 24AWG (7x32) Stranded Copper, Polyolefin Insulation, Overall Foil Shield, 24AWG Stranded TC Drain Wire, UV Sunlight and Oil Resistant PVC Outer Jacket, and CMX-Outdoor CMR. It’s protected by an overall Aluminum Interlocked Armor with UV Sunlight and Oil Resistant PVC Outer Jacket applied over the CAT5E Inner core.

  • Part Number NWT-CAT5E-OFAS-A

  • Industrial Armored Ethernet cable

  • Rated for severe installations

  • Dynamic applications

  • 200Mhz Category 5e

  • Industrial Patch Cable

  • Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 1000BaseT, 2.5GBase-T, 5GBase-T, 155ATM, 622ATM

  • NTSC/PAL Component or Composite Video, AES/EBU, Digital Video, RS-422, CMX – Outdoor, RJ45 Compatible


Download datasheet

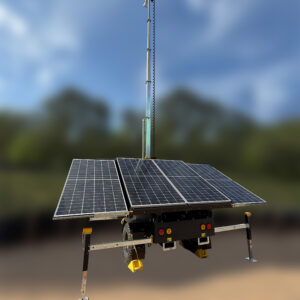

Mobile Communication and Light Stations




The NW Towers single- and double-axle communications caravans are fully-customizable, widely extensible, and compact. They include a solar array and multi-day batteries, and the ability to add auxiliary power sources. It has a wide variety of environmental and usage specifications.

  • Equipped with high-output solar array and multi-day batteries

  • Auxiliary power options can be added

  • Double-axle model includes 19” server rails

  • The hydraulic communications mast deploys in under a minute

  • Fully deployable by one technician

  • Solar array is vertically articulated and controlled with an electronic actuator

  • Battery bank, communications box, charging controller, and mast controls are located within the weather-resistant trailer housing

  • Built for long-life, high levels of outdoor utilization and quick deployment

  • Combination light and radio stations available as well as lights alone


Download datasheet

Ignite - IP-67 Power-over-Ethernet (PoE)




The NWT-VHDC-24V-50W (NWT-POE-DC-24V-RJ45-IP67) is a 24-volt DC, gigabit capable, midspan power over ethernet (PoE) injector designed for high reliability military and industrial applications. It features ruggedized enclosures, over-temperature, over-voltage, and over-current capabilities, reverse polarity, and short-circuit protection.

  • IP67-rated

  • Includes 6-foot 3-pin unterminated DC input power cord

  • Supports a wide 8–80 VDC input range, useful in stabilizing the power from input sources such as vehicle batteries,

  • Requires an input voltage of between 8-80 Volts DC provided to the three pin Amphenol twist lock DC plug at the bottom of the device.

  • An inline 3 AMP user serviceable AGC fuse has been added to the inline power circuit for extra protection and ease of installation.

  • The NWT DC POE has 3 connections in total - (1) x RJ45 Jack for DATA input (DATA), (1) x RJ45 Jack for PoE output (24v POE), and (1) x three pin Amphenol twist lock plug for DC Power input (8-80VDC IN)

  • Refer to datasheet for more details


Download datasheet

Semi-Permanent, Permanent, Temporary Towers




Northwest Towers, designs and constructs custom towers. NWT takes into consideration the load, environment, network, and operational requirements to ensure the best selection for your project. The towers provided by NWT are designed to support communications, surveillance, lighting, environmental monitoring, and wind power generation. We offer towers, at over 70-meters in height, that can be constructed within days and moved, repositioned later to accommodate site developments.

There are endless customizations available that include solar power for tower installed equipment, safe climbing accessories, protective fencing, and lightning protection. Finally, NWT provides post installation tower and equipment maintenance.

  • Lattice style fixed
  • Embedded monopole
  • Semi-permanent ballasted foundation monopole
  • Temporary quick deployment

Download datasheet

Portable End User Devices




Reliable client experience is essential to efficient, safe operations. Northwest Tower's line of portable/ handheld devices ensures the right fit for your application. TETRA, DMR, LTE, WI-FI, P25 we can provide the right, rugged device to ensure solid, consistent communications.


Download datasheet

Surveillance cameras




Northwest Towers integrates high quality, fit for purpose video surveillance equipment. This equipment can be outdoor rated, installed on one of our customized trailers and combined with high-throughput wireless equipment for temporary deployment or combined with one of our tower kits for semi-permanent installations.


Download datasheet

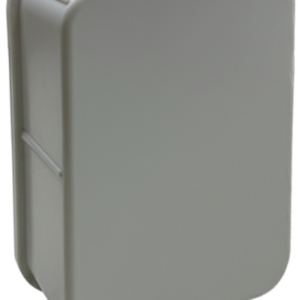

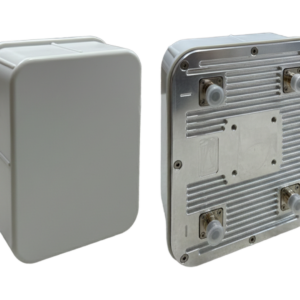

Antennas




Our antennas offer high quality transmissions of a variety of frequencies. They are designed and engineered for use in all types of vehicles, fixed locations, indoor and outdoor. They have been rigorously tested and support all types of challenging conditions. The right choice of antenna can determine the entire networks performance.


Download datasheet

Resilient wireless networks and devices

Optimizing operations, ensuring critical data transfer, ready for the future. Get in touch when you’re ready to start exploring your next industrial wireless project.
