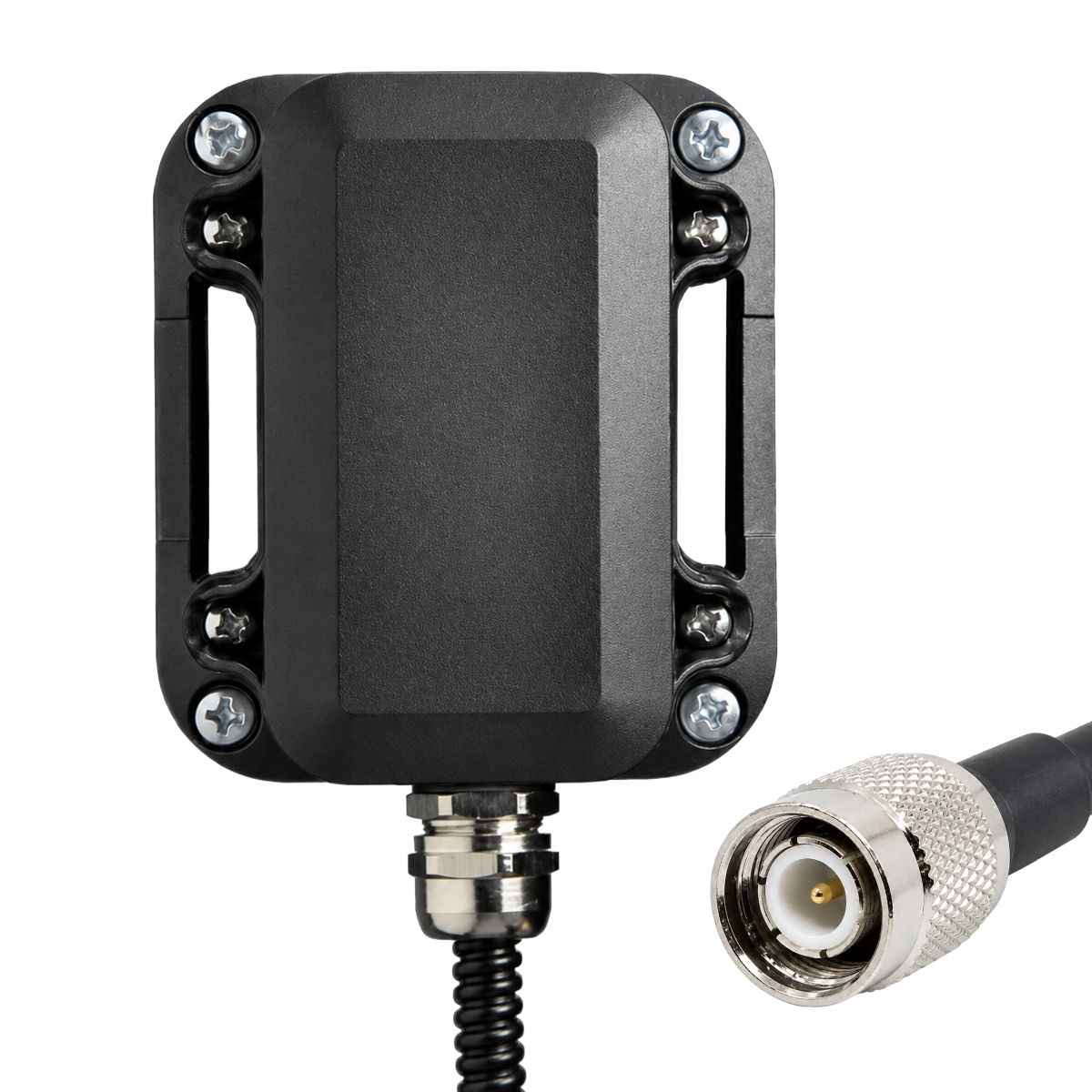

Rugged / Armored Active GPS Antenna (TNC)

Name: Rugged / Armored Active GPS Antenna (TNC) - Northwest Towers
Brand: simple
SKU: NWT-GPS-TNC
Price: 329.00 USD
Availability: InStock

Part Number

NWT-GPS-TNC

Description

The rugged GPS antenna NWT-GPS-TNC is an active GPS/GNSS antenna engineered for reliable signal acquisition in demanding industrial environments. Its integrated Low Noise Amplifier (LNA) delivers high gain and low noise performance across primary GNSS frequency bands.

Built inside an IP67 weatherproof enclosure with a TNC male connector, this rugged GPS antenna supports GPS, GLONASS, Galileo, BeiDou and QZSS. It is designed for challenging deployments including deep pit mines, indoor industrial facilities, rugged outdoor installations and high-interference zones.

Features and Applications

– Active rugged GPS antenna with integrated Low Noise Amplifier (LNA)
– Supports GPS, GLONASS, Galileo, BeiDou and QZSS
– 1559–1606 MHz operating frequency range
– 28 ± 3 dB LNA gain with low noise performance
– Right-Hand Circular Polarization (RHCP)
– Weatherproof IP67 enclosure with TNC Male connector
– Industrial operating temperature from -40°C to +85°C
– Designed for deep pit mines, indoor industrial facilities, rugged outdoor deployments and high-interference zones

Downloads

Datasheet | Product Brief

$329.00
