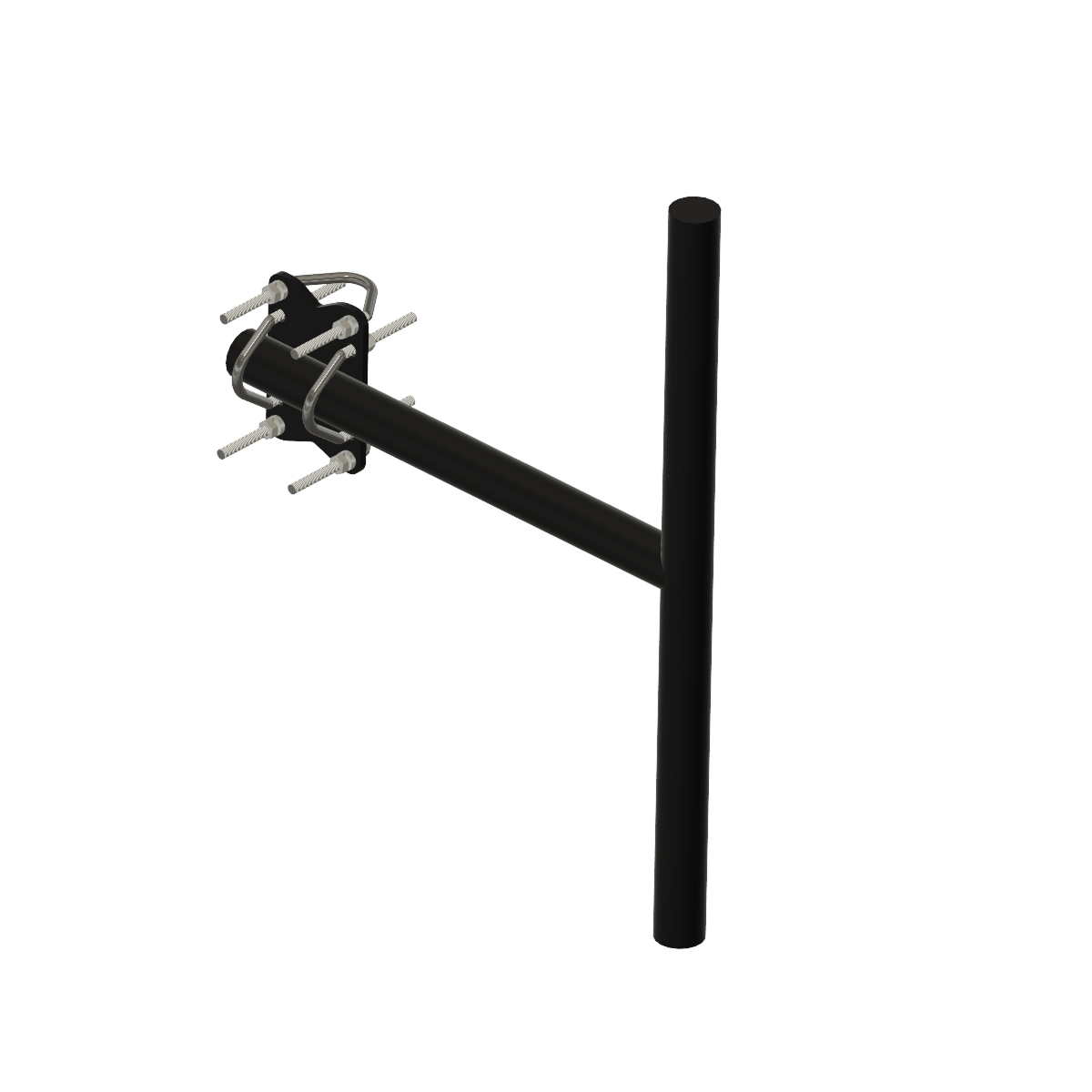

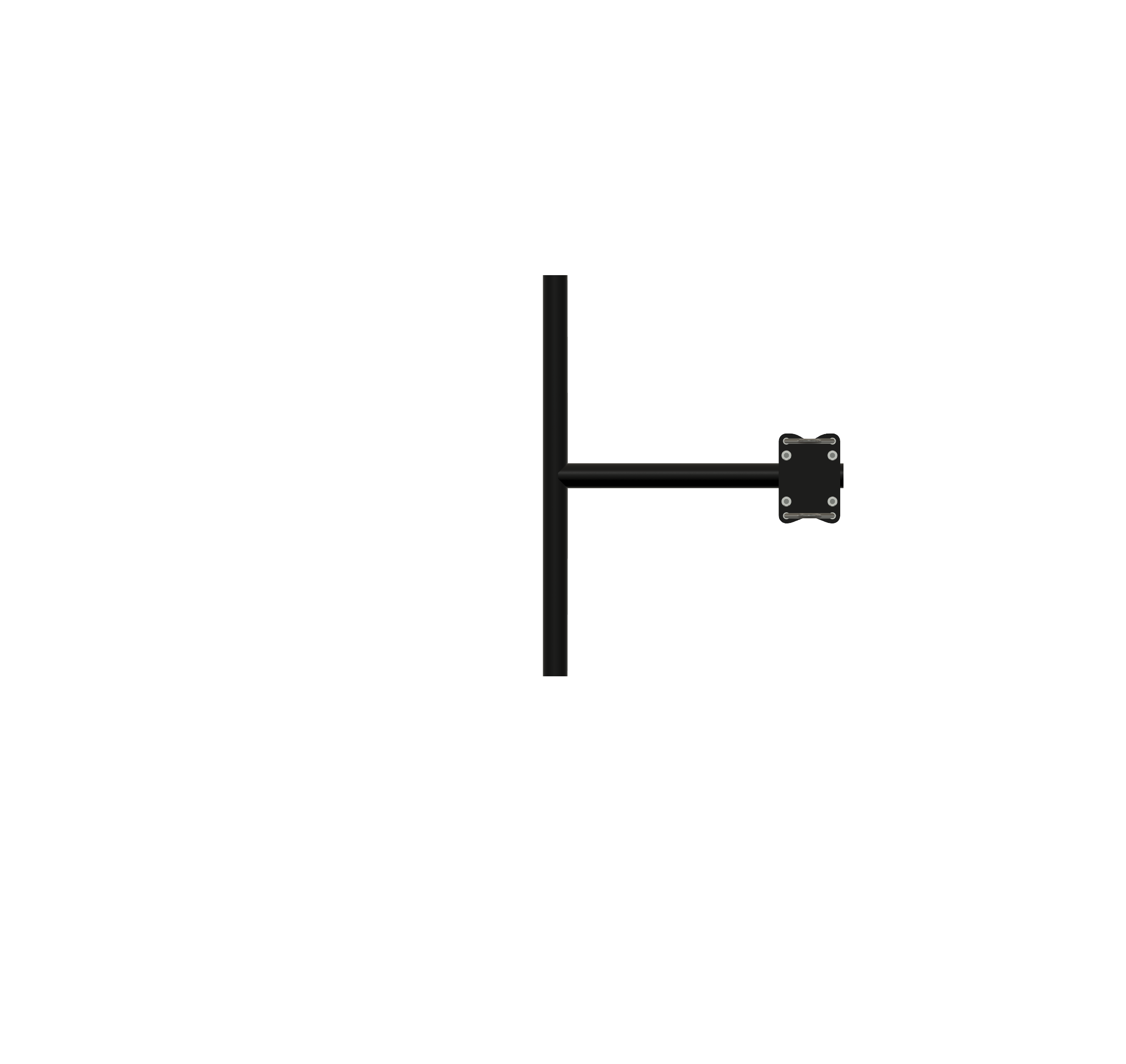

Haul Truck Antenna Mount V2

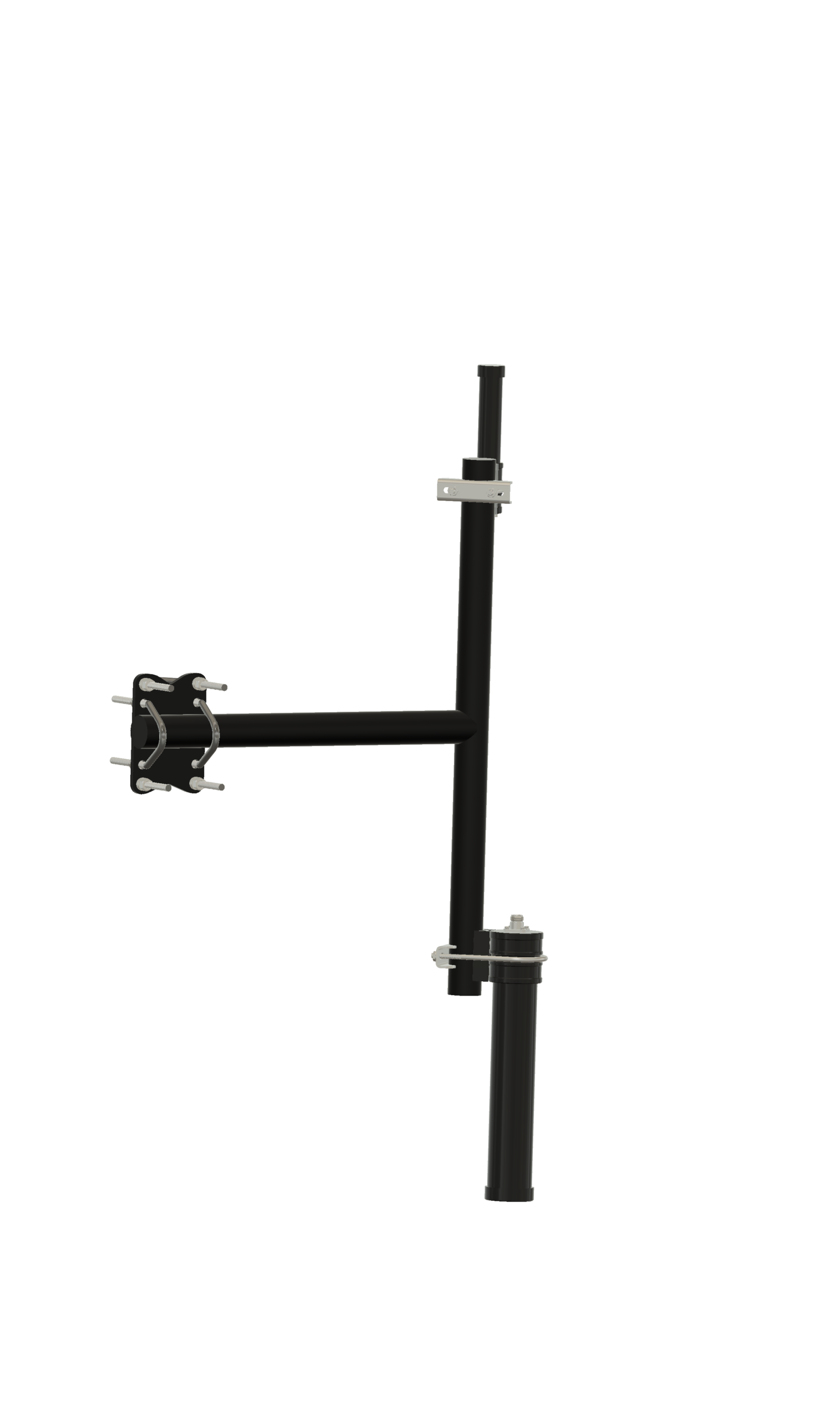

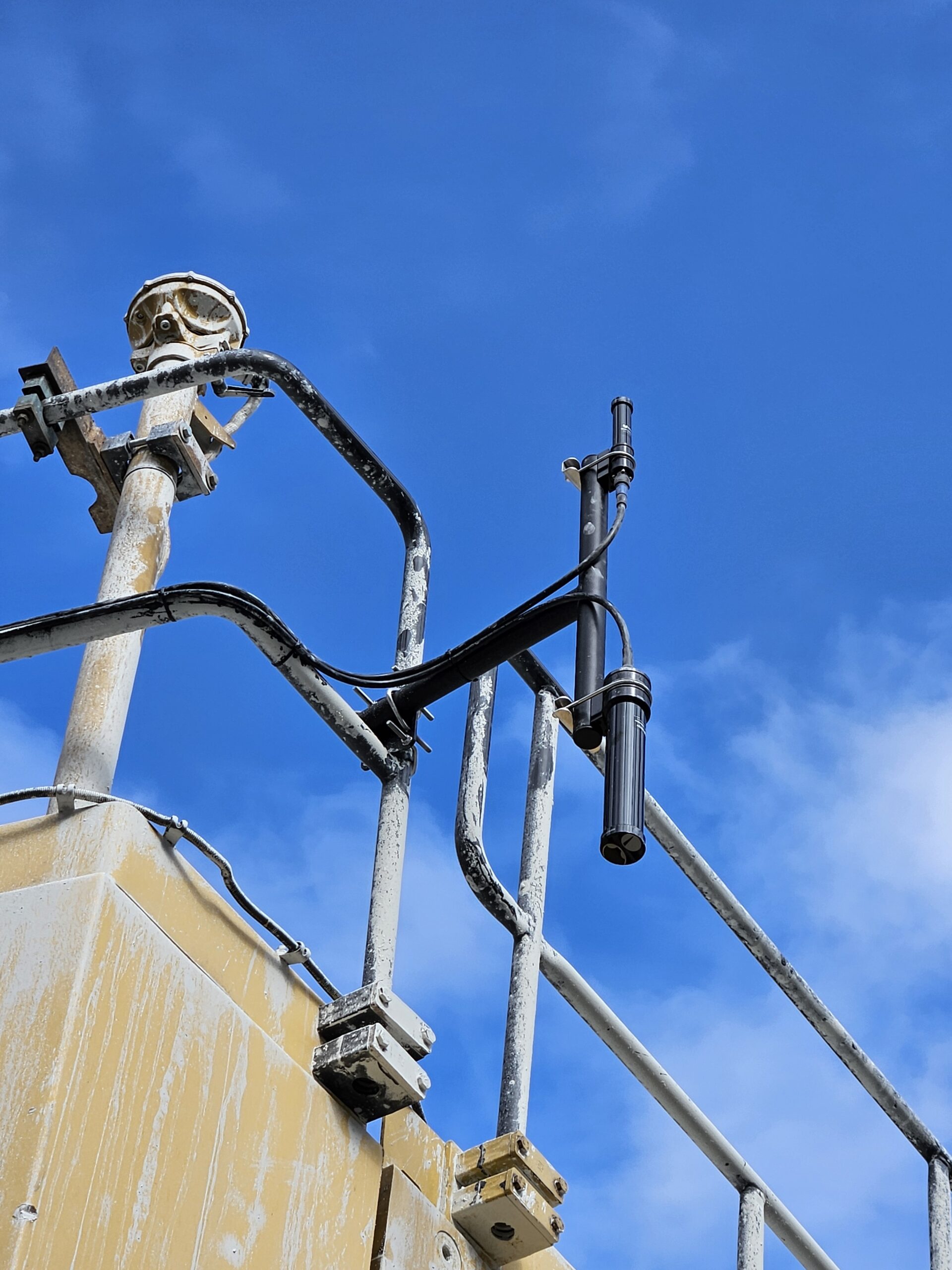

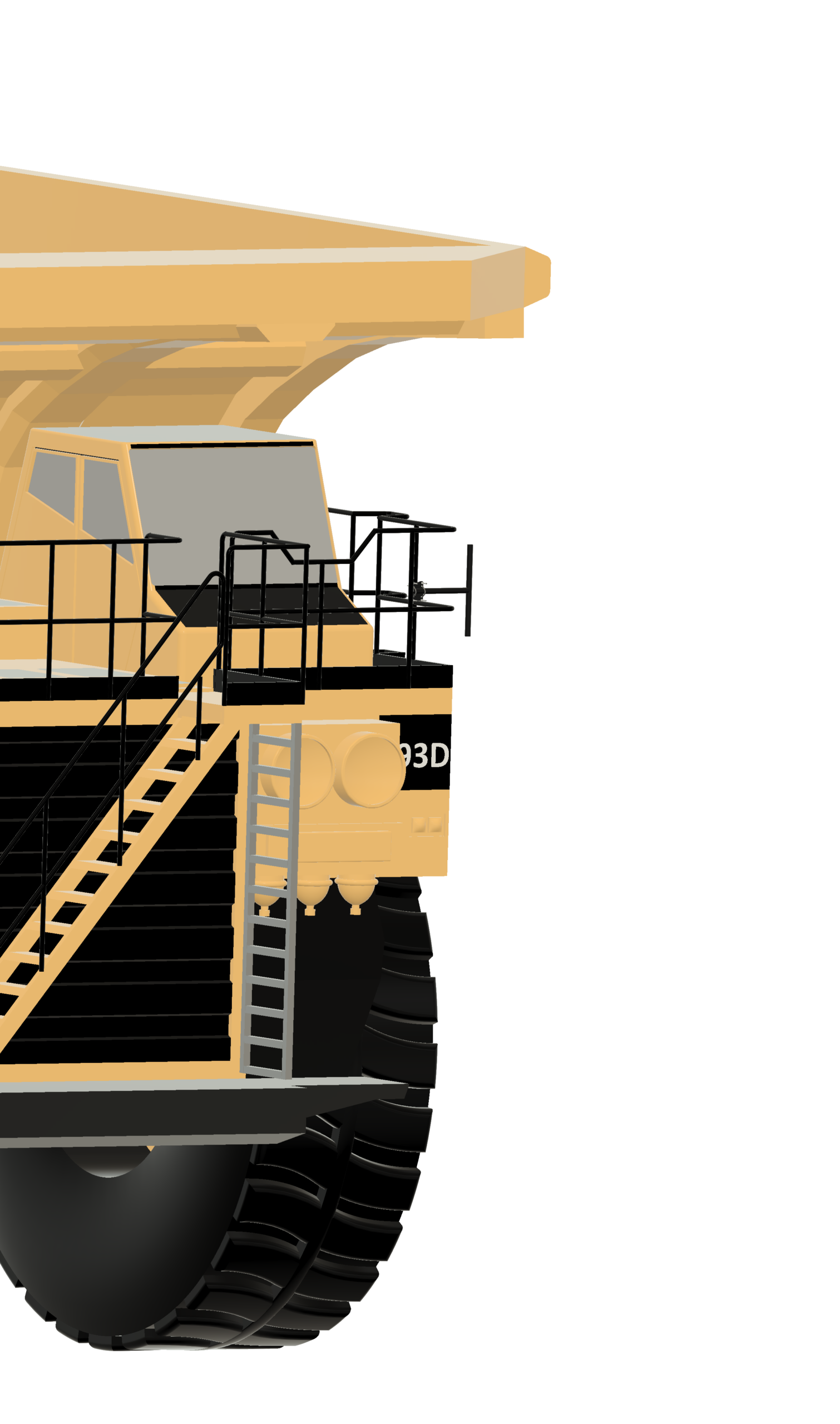

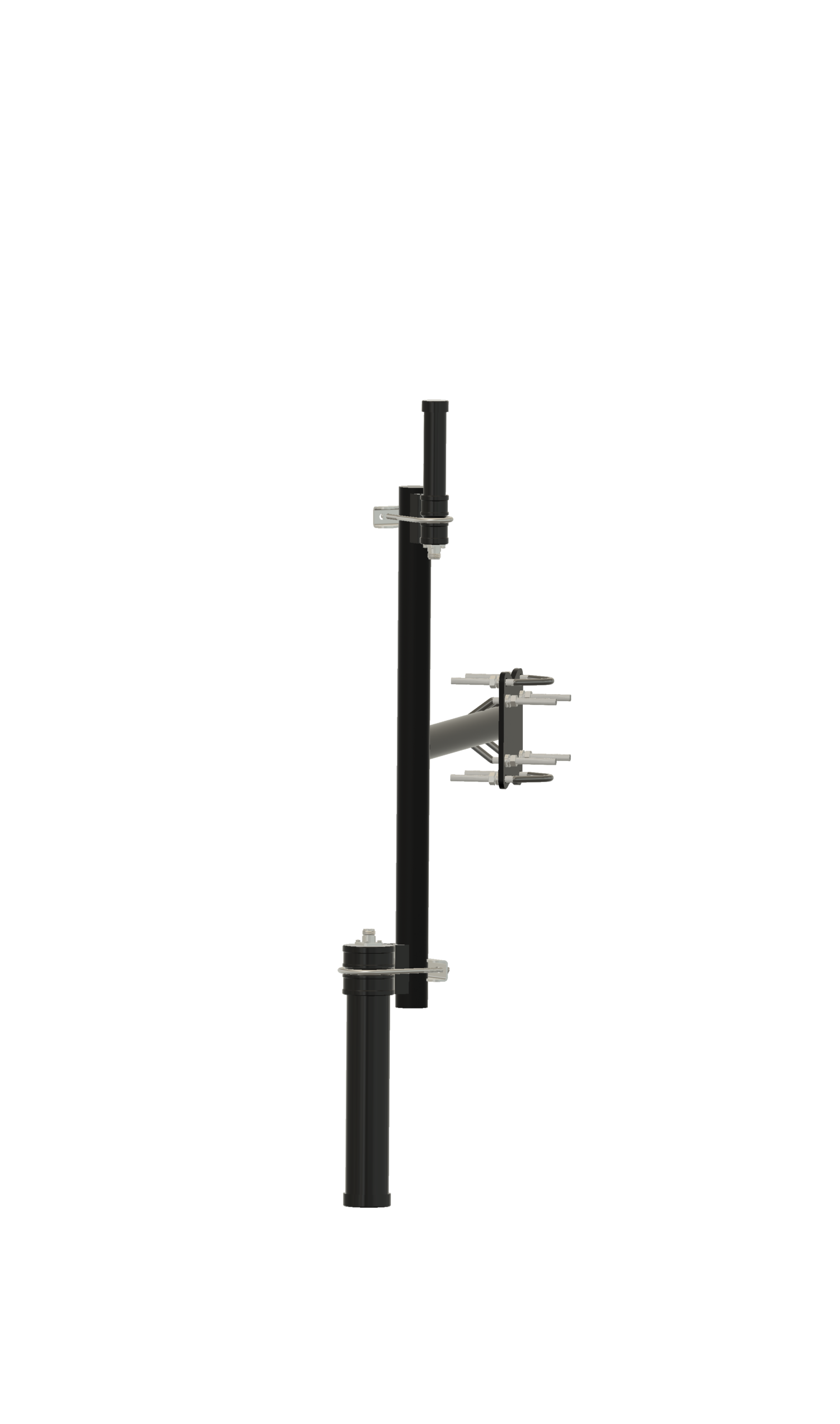

Our haul truck antenna mount is sold as a kit of (2) for mounting up to (4) antennas to a haul truck, shovel, drill, dozer, or other heavy equipment.  The crossover plate can be mounted horizontally or vertically on a handrail or any pipe from 1 ½” to 2 3/8” OD. It has a positive capture groove on both sides that can be butted up against a perpendicular bar to prevent rotation. The custom designed v-bolt maintains 3 points of contact regardless of the pipe diameter, which allows you to prevent rotation without having to tighten down the bolt so tight that you crush the pipes you’re mounting to. The haul truck antenna mount provides 16” of standoff from the metallic body of the vehicle which minimizes passive intermodulation and the effects of near-field reflections on the antennas. The haul truck antenna mount places both antennas in each other’s null zones to minimize self interference.
