2×2 MIMO WiFi Mesh Mining Antenna – Dual Band 2.4/5.8GHz Dual Polarity Omni-directional

Name: 2x2 MIMO WiFi Mesh Mining Antenna – Dual Band 2.4/5.8GHz Dual Polarity Omni-directional - Northwest Towers
Brand: simple
SKU: NWT-ANT-2458-3VH2P
Price: 415.00 USD
Availability: InStock

Part Number

NWT-ANT-2458-3VH2P

Description

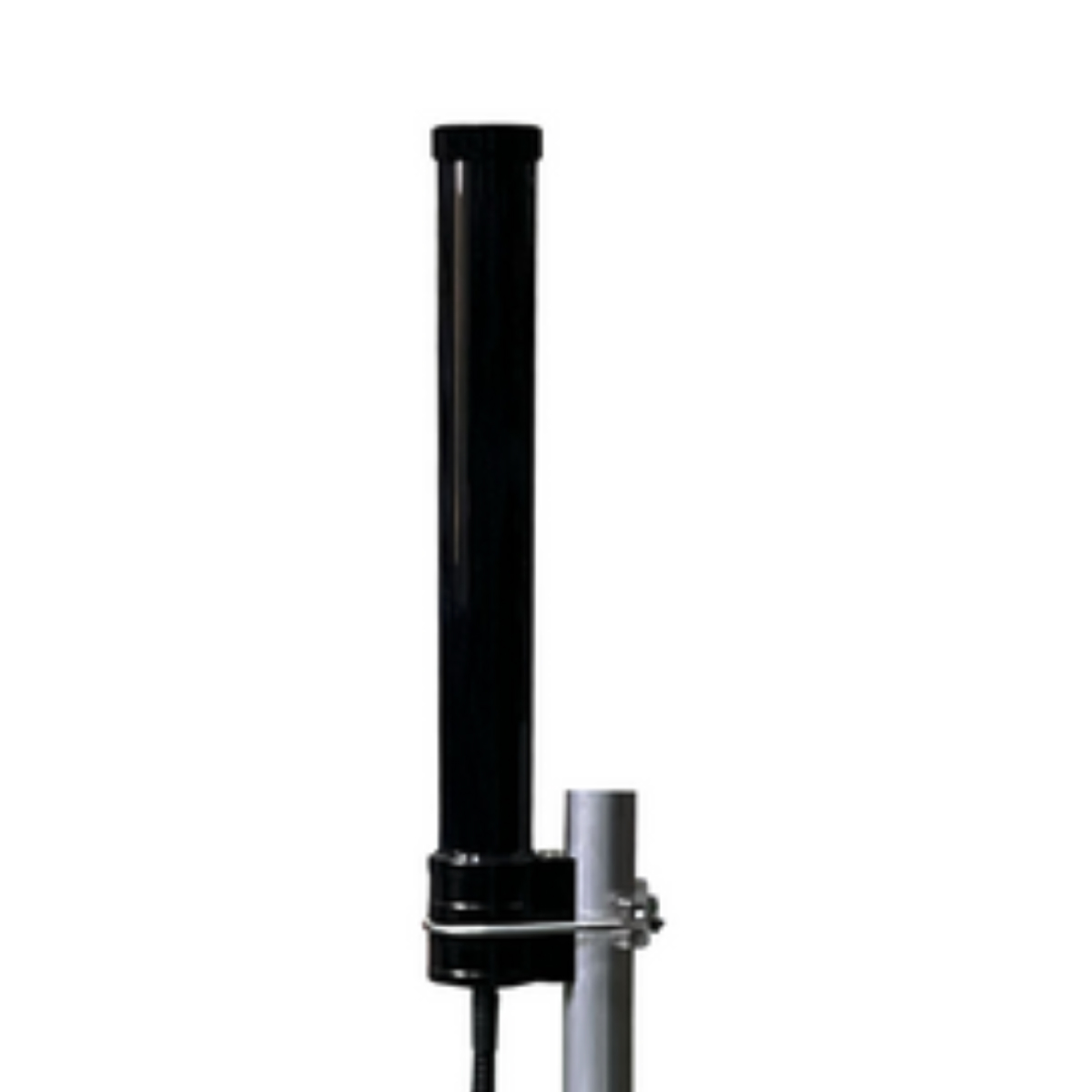

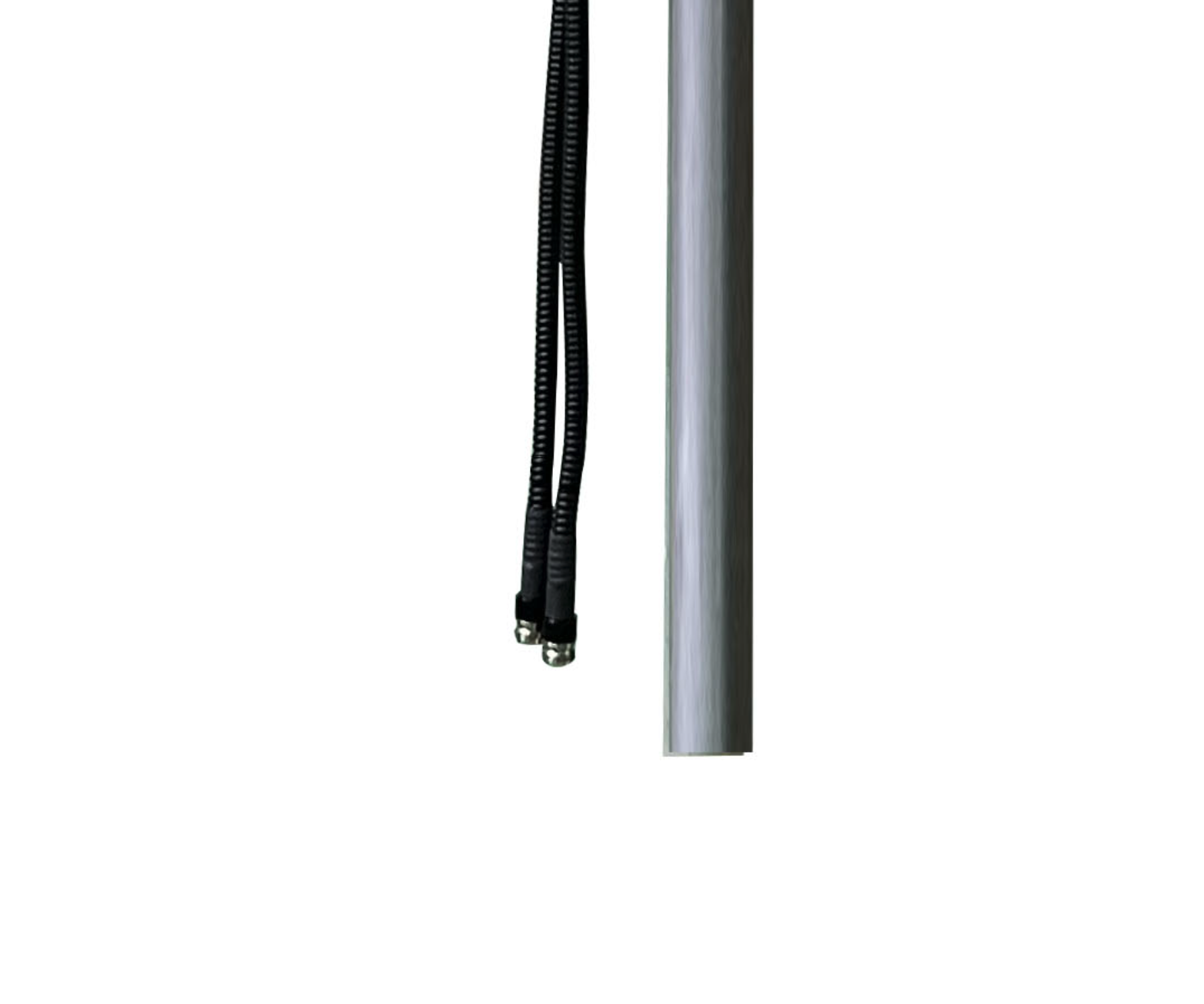

Our 2×2 MIMO WiFi Mesh mining antenna supports dual-band (2.4/5.8GHz) operation. This dual-polarization (horizontal/vertical) omnidirectional antenna is designed for use with MIMO radio systems in open-pit mining environments. Featuring (2) N-Female coax connectors with staggered 17.5″ and 18″ armored 50-ohm LMR240UF coax cables.

The coverage pattern provides the perfect balance between gain and vertical coverage, delivering exceptional results in open-pit mining environments that have hundreds of feet of vertical elevation to cover.

The wide vertical beamwidth allows it to reach great depths in open-pit mining and similarly challenged topologies. The rugged antenna design and build quality were created with heavy machinery in mind. These antennas are purpose-built for open-pit mining and industrial Wi-Fi and mesh network applications.

Features and Applications

– Dual Polarized (H/V) Omni Antenna
– 55 Degree Vertical Beamwidth 2400MHz
– 2500MHz and 5100MHz – 5900MHz
– Offering a single model for both 2.4GHz and 5GHz reduces stocking SKUs for spare inventory by 50%
– Wide vertical beamwidth is ideal in topology with broad variations in elevation
– Low VSWR, and stable gain across the entire working frequency range
– Optimal pattern plots across entire working frequency range, which ensures excellent RF coverage in all directions.
